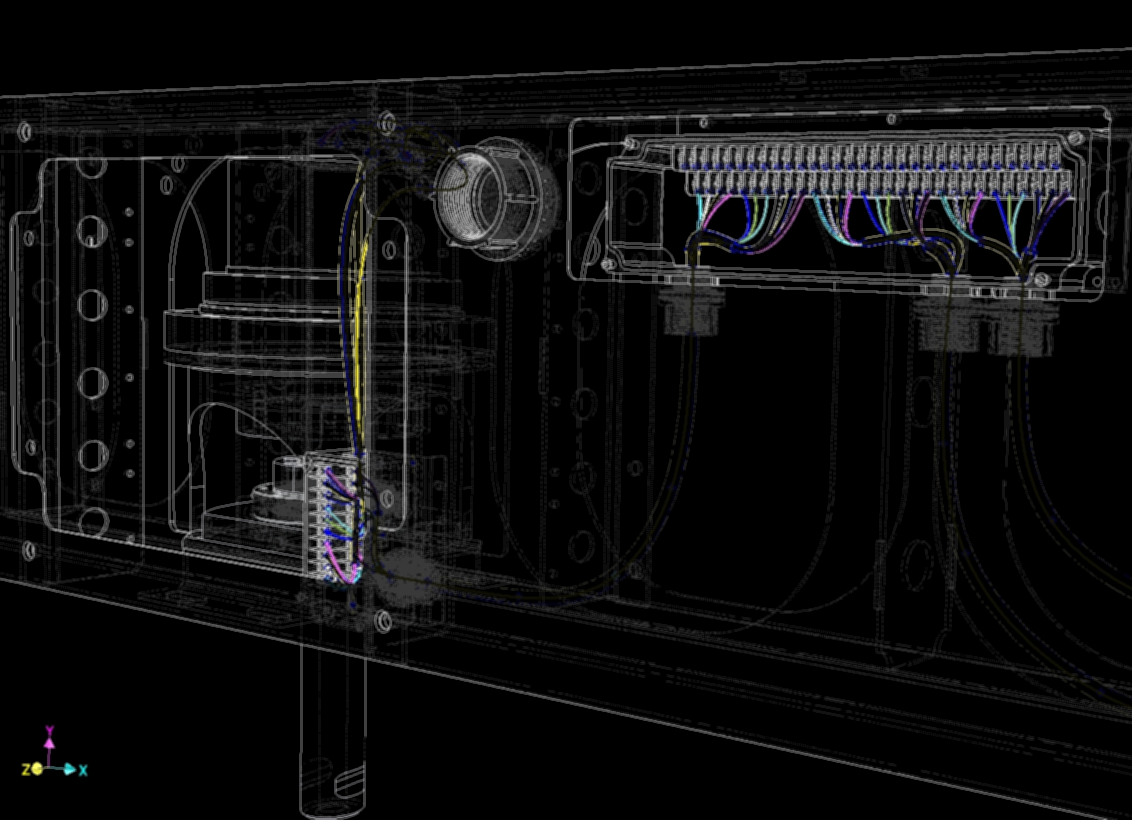

Motor Truss
rendering
Kinetic Digital Video Louver Array | Animated Rendering

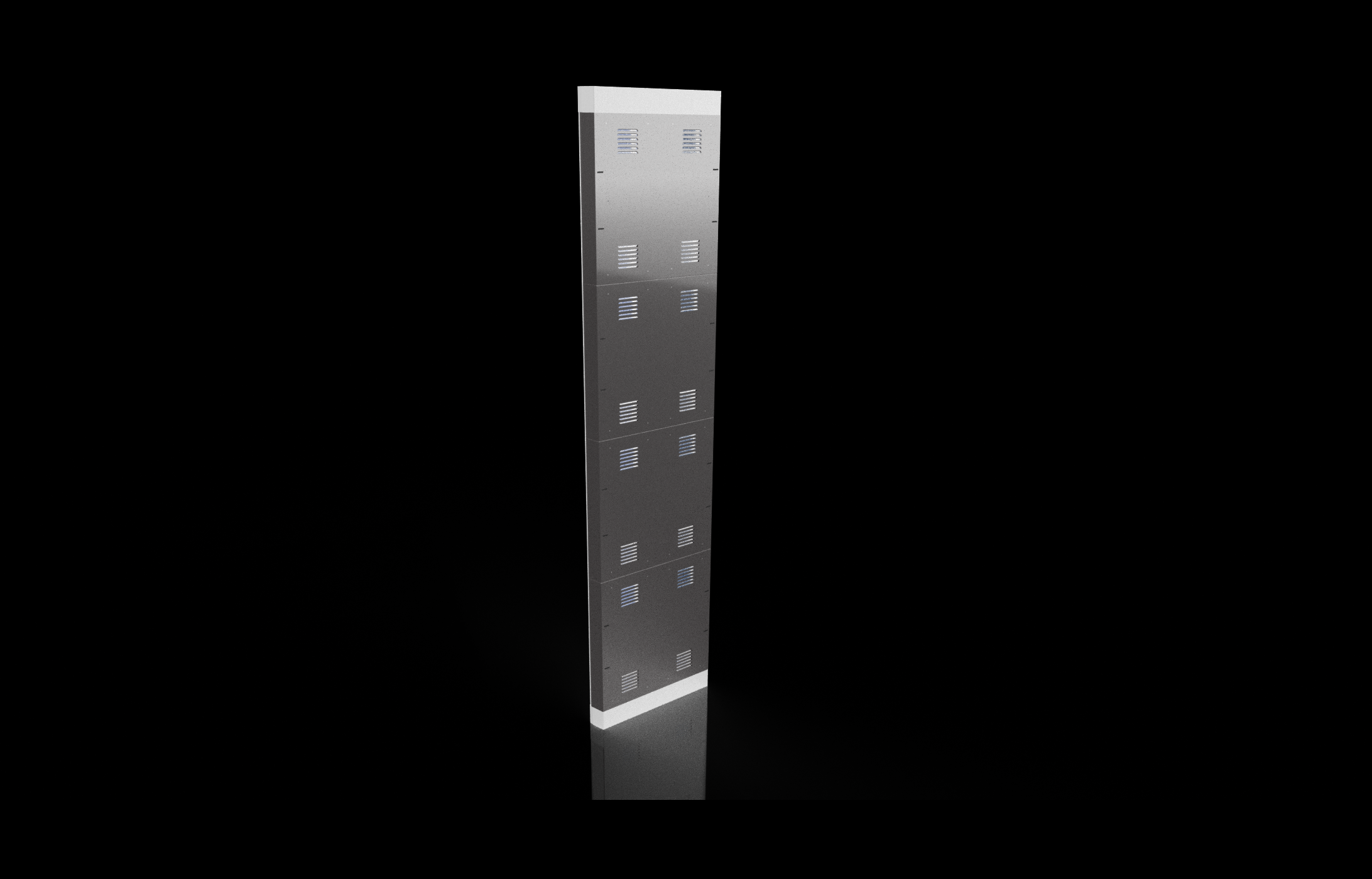

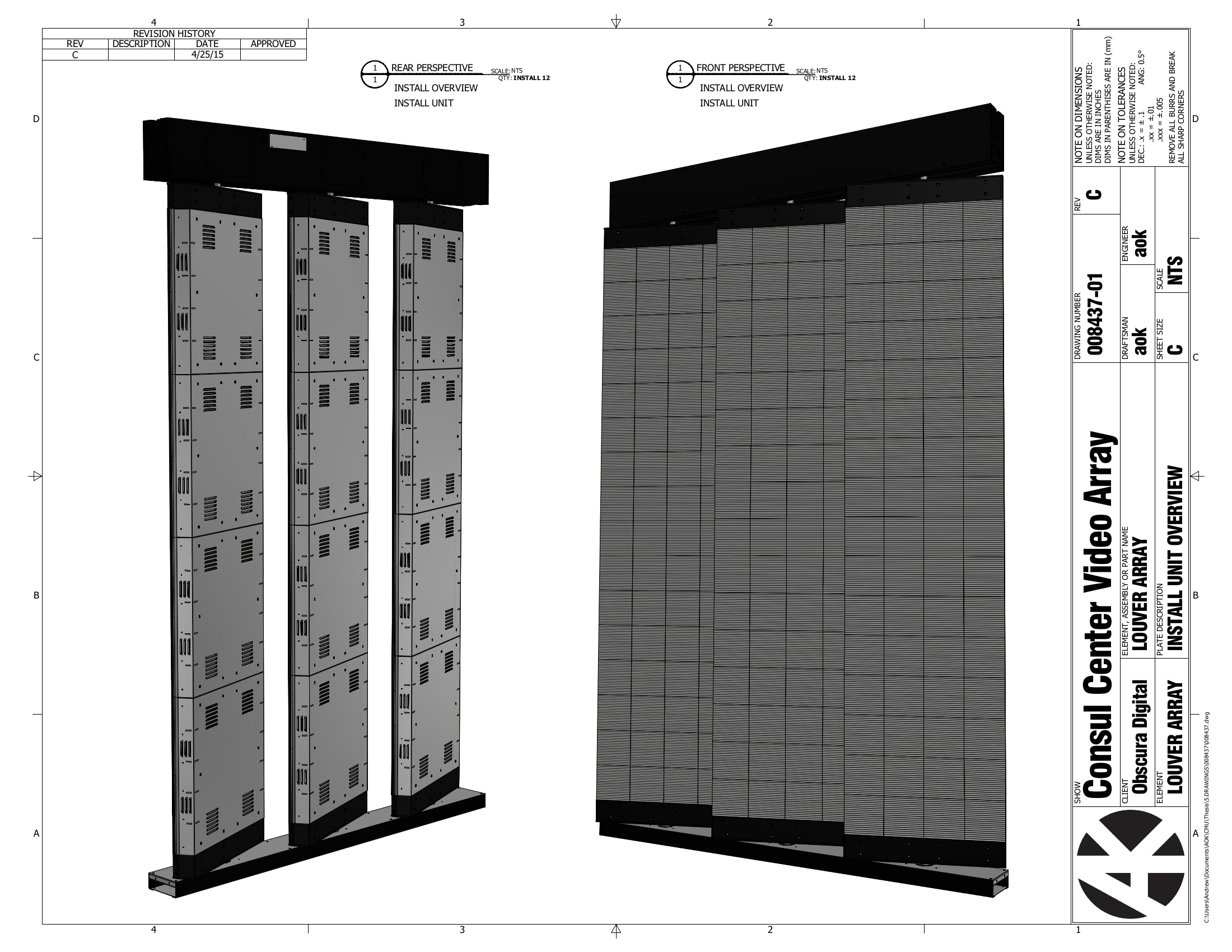

Louver Array
overview

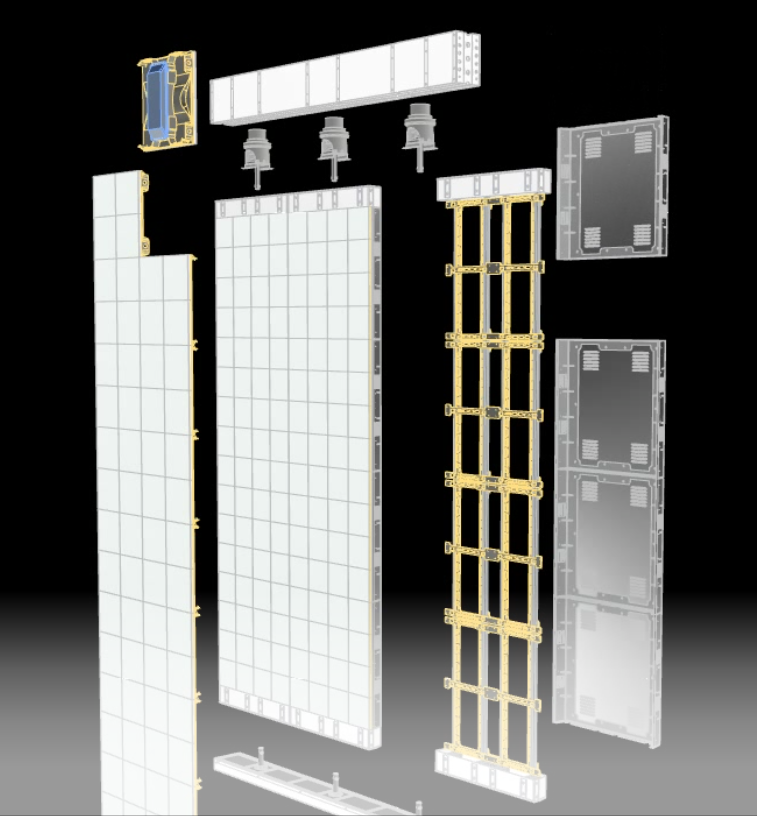

Louver Assembly | Assembly Animation

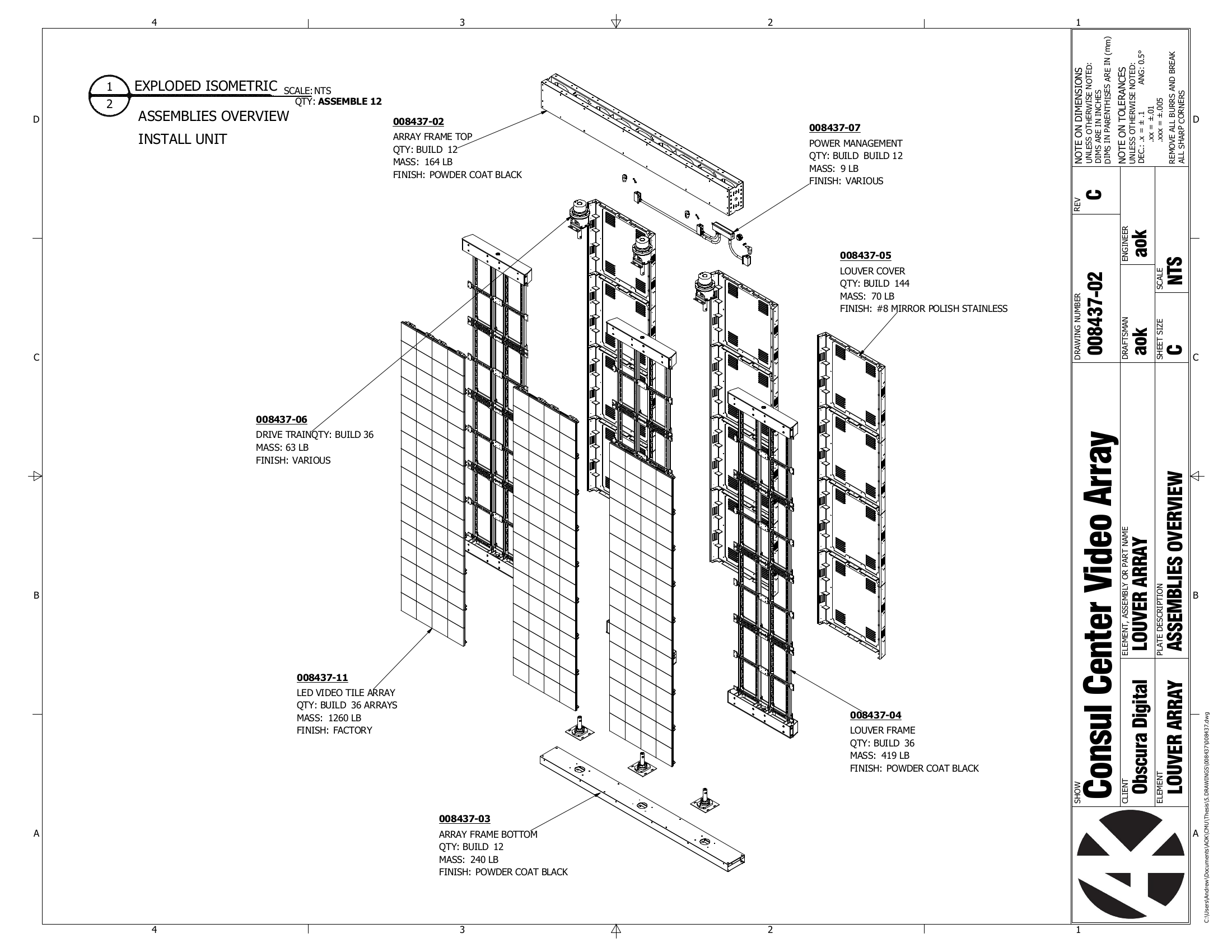

Louver Assembly
assembly
Motor Truss
assembly
Motor Truss
weldment
Louver Cover
assembly

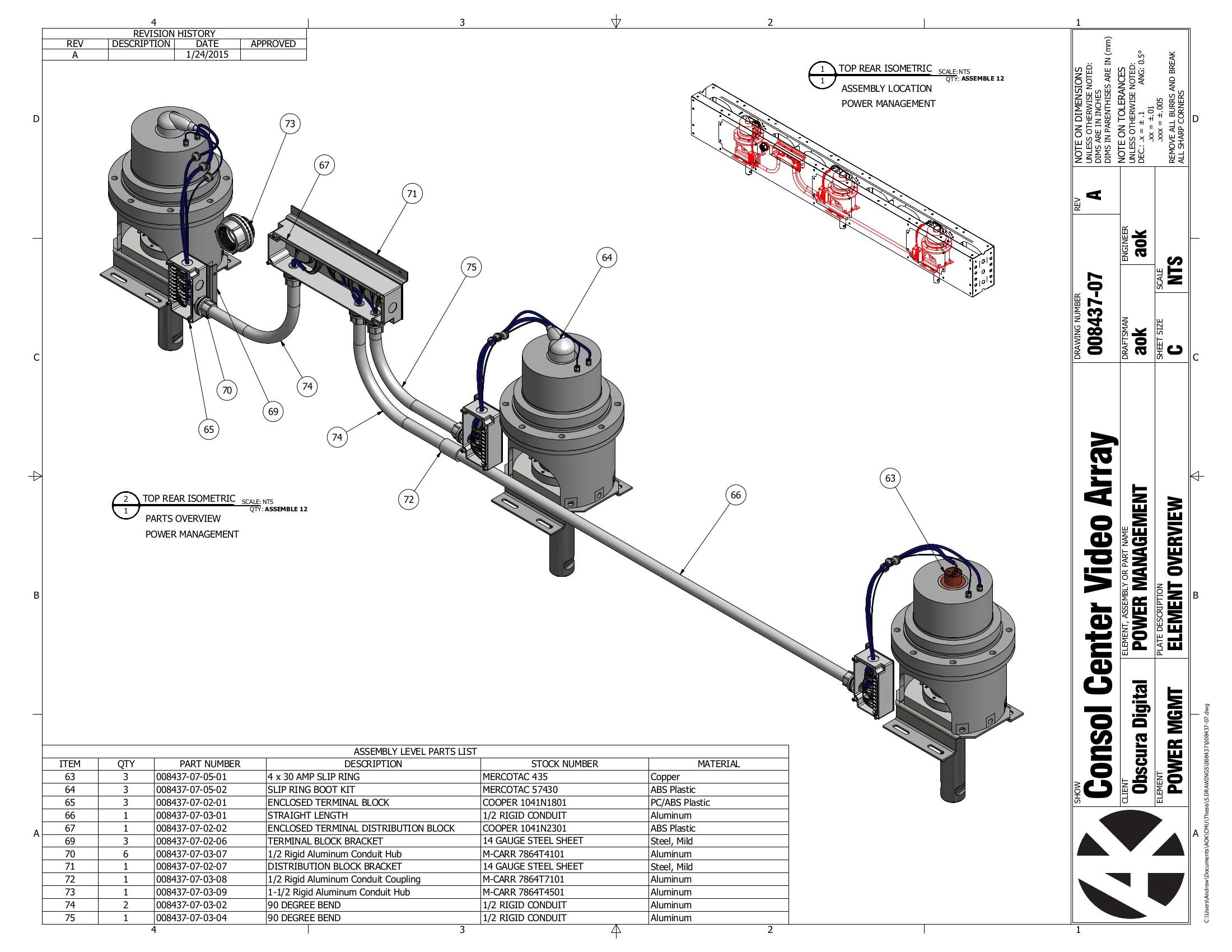

Louver Power and Control
assembly

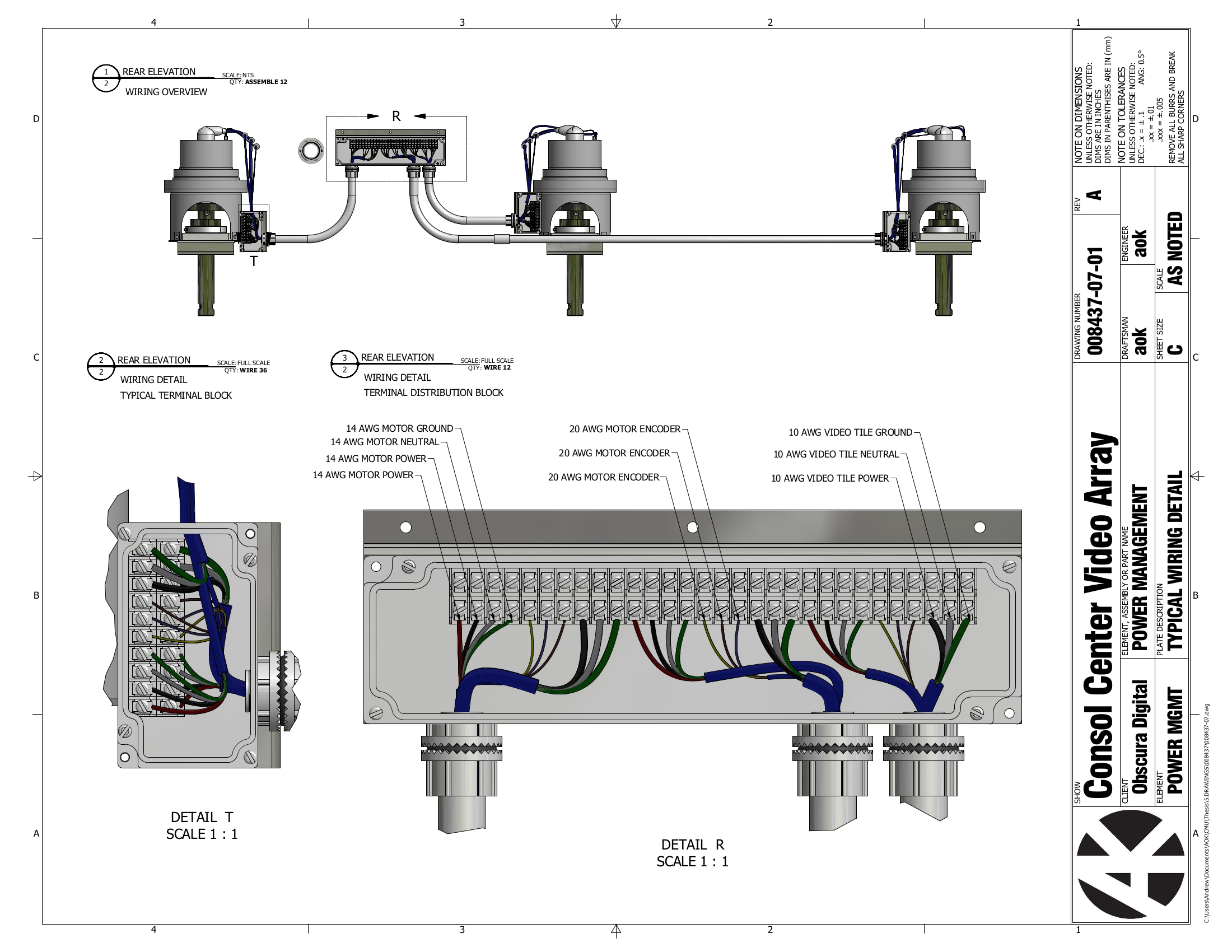

Louver Power and Control
wiring detail

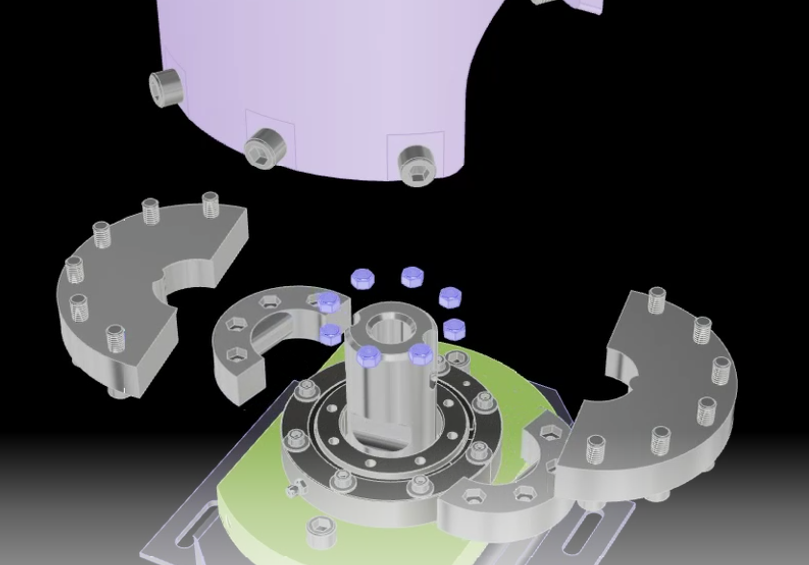

Power Train | Assembly Animation
Power Train | Dynamic Analysis
typical cue motion profile and resulting torque requirement
Hazard Analysis | Failure Modes and Effects

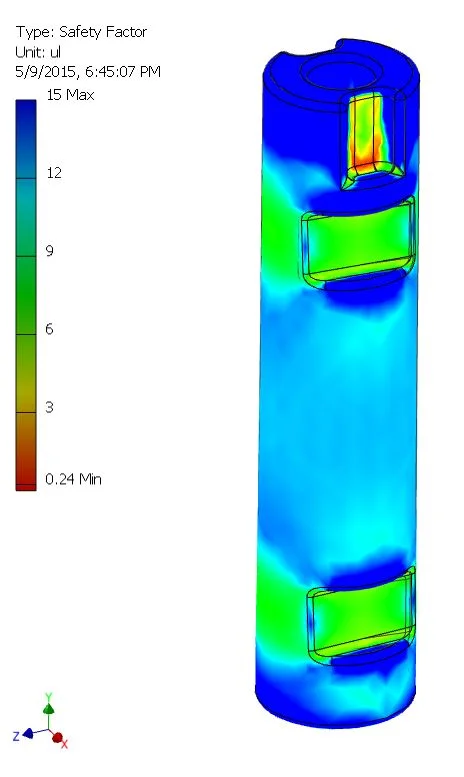

Finite Element Analysis
based on load bearing and worst-case torque requirements - working towards a Safety Factor of 10

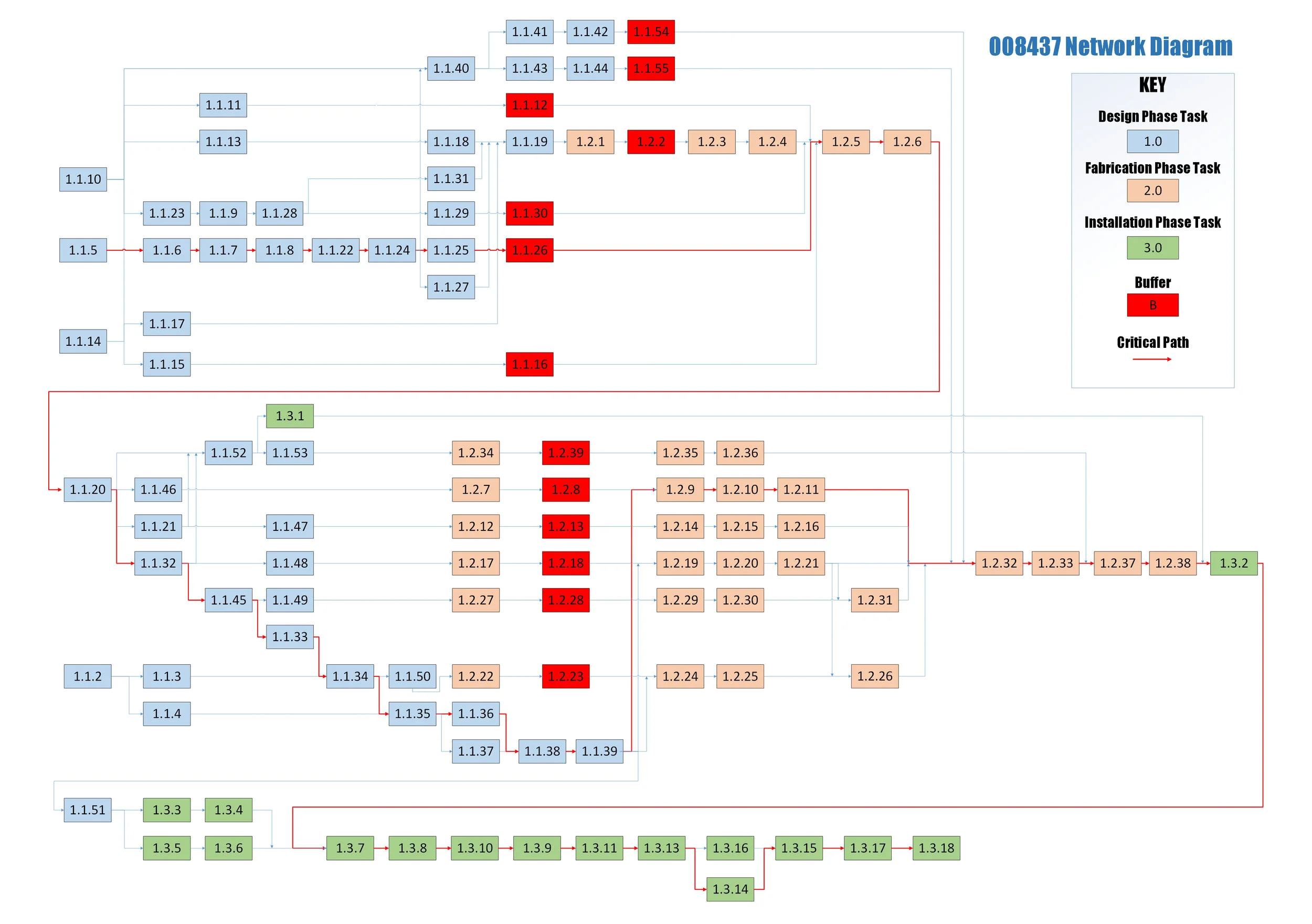

Project Analysis | Critical Path

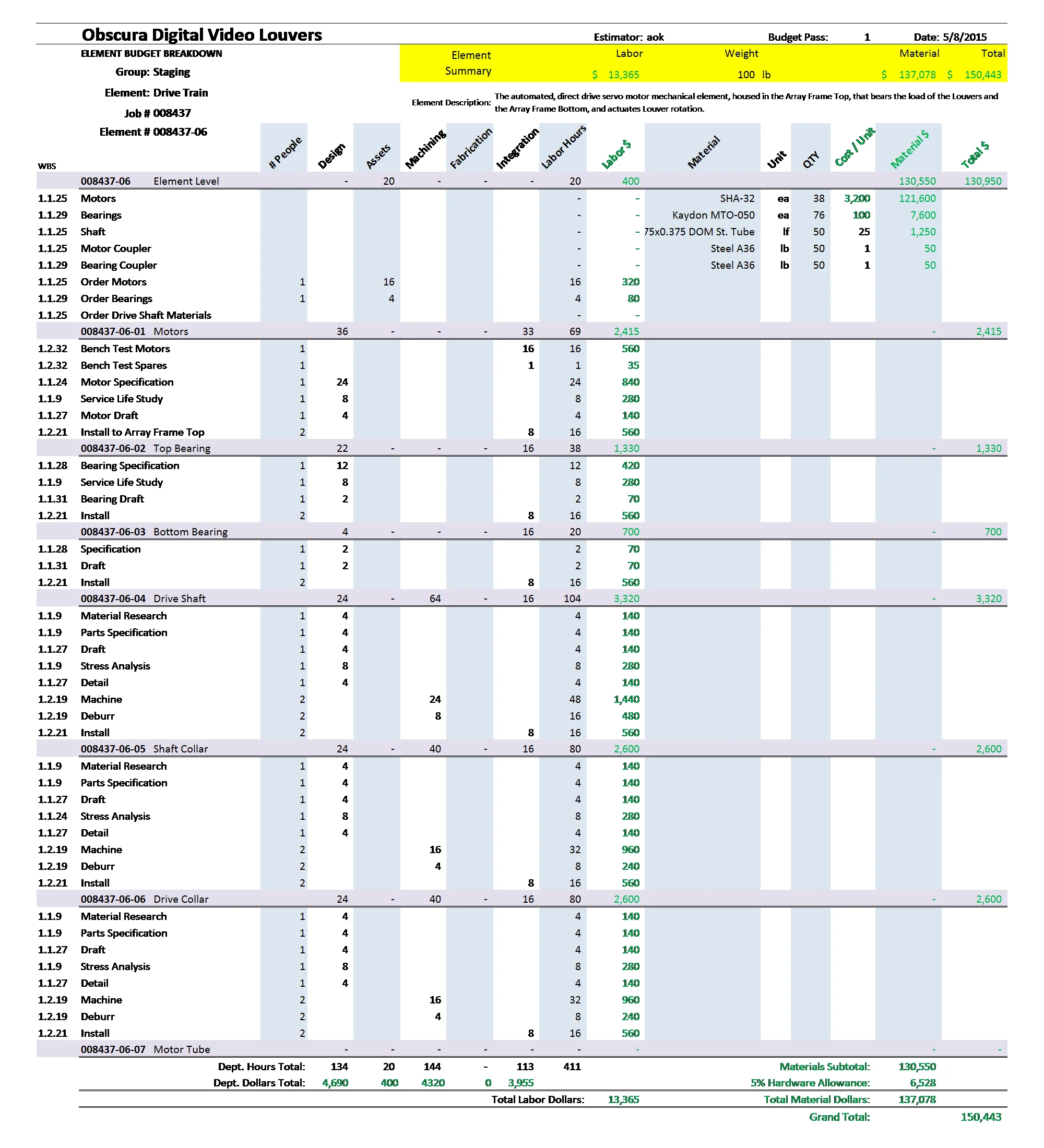

Project Analysis | Proposed Budget
2015 MFA Thesis Presentation | Video
thesis powerpoint presentation [9 min.]
